ACR AISLink CA2 Class A AIS Transponder

Available: 0 - Same Day Shipping (M-F)
Manufacturer: ACR Electronics
Part Number: 2666
UPC: 791659026663
SKU: 85216
PRICE: $2177.27 --- MSRP: $2299.95 --- Discount 5%
NO SALES TAX except WA State

Out of stock


Out of stock

ACR Electronics Brand Image

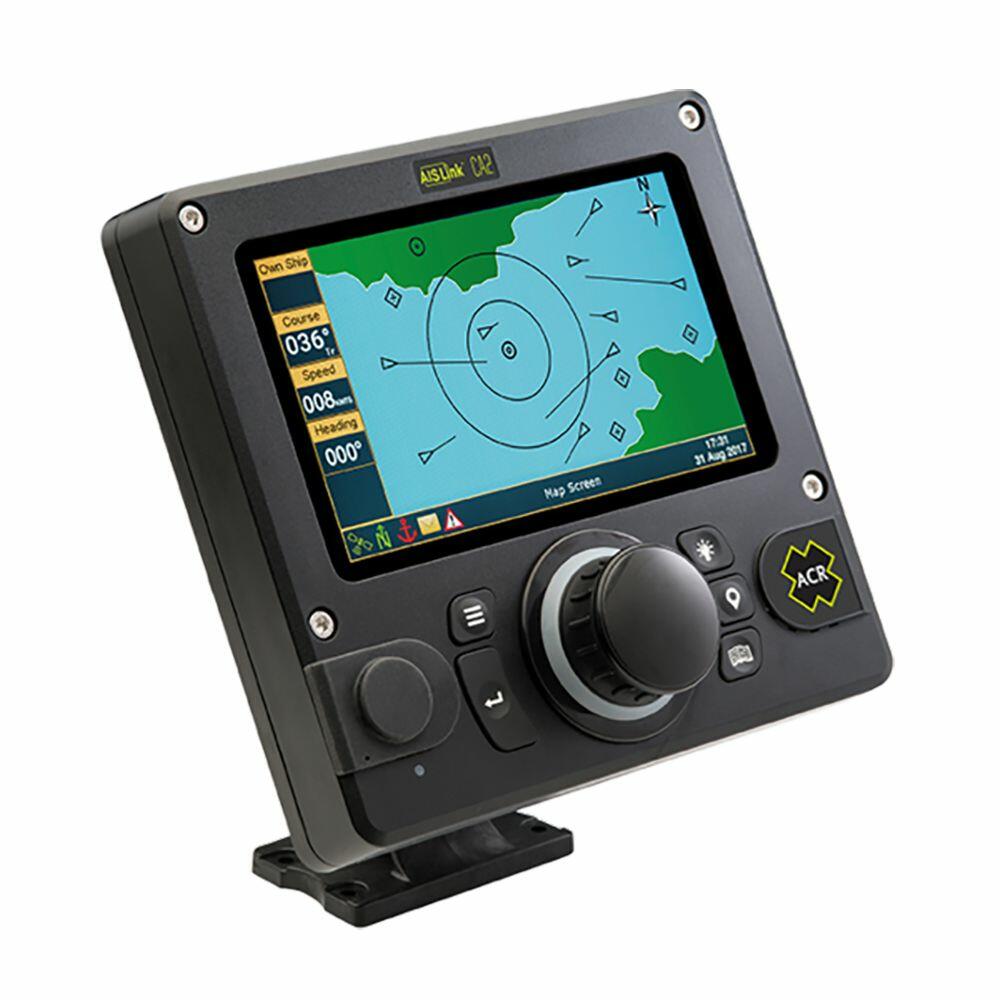

AISLink CA2 Class A AIS Transponder

The AISLink CA2 AIS Transponder is a fully compliant Class A transceiver designed to complement the existing range of maritime safety equipment from ACR Electronics.

This compact, single unit solution is capable of exchanging dynamic and static ship data with other AIS systems.  Real time marine traffic information is continuously interpreted using a powerful internal processing engine and displayed on a 7” full-color, rapid-response LCD.  The coastline map view and radar view have various orientation display options allowing for user preference while a standard target list display gives immediate detailed listings of nearby vessels which can be sorted to the owner’s desire.

Used as an aid to collision-avoidance, the CA2 combines the trusted technology and product design that have become synonymous with ACR products.

The AIS message-sending functionality is simple to use, ensuring safety related messages can be quickly delivered or received by the user with very little effort.  An instant message and alarm function provides immediate notification of any potential problems or hazards.

Dynamic data such as location, speed over ground and course over ground is calculated automatically using the integrated 99-channel GPS receiver, while the static and voyage related data such as MMSI, call sign and name, type of ship, destination, ETA etc. is easily programmed into the AIS transponder via a user-friendly menu interface.

This single unit solution to meet AIS requirements ensures a minimal use of bridge space and its surface or free-standing mounting options allow for easy installation into almost any position or location.  It also includes multiple connectivity options including WiFi, USB port, serial and Pilot plug.


  • Compact single unit solution with full color display
  • User programmable
  • Color coastline map
  • Selectable chart orientation
  • Incoming message and alarm display
  • Surface mount and bracket mount options
  • Continuous self-testing with alarm notifications


  • U.S.C.G.
  • MED
  • Transport Canada

Technical Specifications:

  • AIS Category – Class A
  • Dimensions (L x W x H) –  8.5” x 8.3” x 5.9” (21.4 x 21.1 x 15 cm)
  • Waterproof – IPX7
  • Power – 9.6 to 31.2 V
  • Transmit Power – 12.5 W
  • Transmit Frequency Range – 156.025 to 162.025 MHz
  • Receiving Frequency Range – 156.025 to 162.025 MHz
  • GPS Channels – 99 (acquisition) and 33 (tracking)

In the Box:

  • AISLink CA2
  • GPS Antenna
  • Mounting hardware
  • USB programming cable
  • Instruction and programming manual(s)

*Sold as an Individual

WarningWARNING: This product can expose you to chemicals including CADMIUM which is known to the State of California to cause cancer or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide Literature (pdf)
Owners Manual (pdf)
Installation Guide (pdf)
GPS Included Yes
Function Receive/Transmit
Display Included Yes
Antenna Included Yes
AIS Class A
