CMC PT-35 Tilt & Trim f/Up to 35hp

Available: 2 - Same Day Shipping (M-F)
Manufacturer: CMC Marine Products
Part Number: 52100
PRICE: $709.39 --- MSRP: $810.90 --- Discount 13%
FREE SHIPPING
NOTE: NO SALES TAX except WA State

$709.39

CMC Marine Products Brand Image

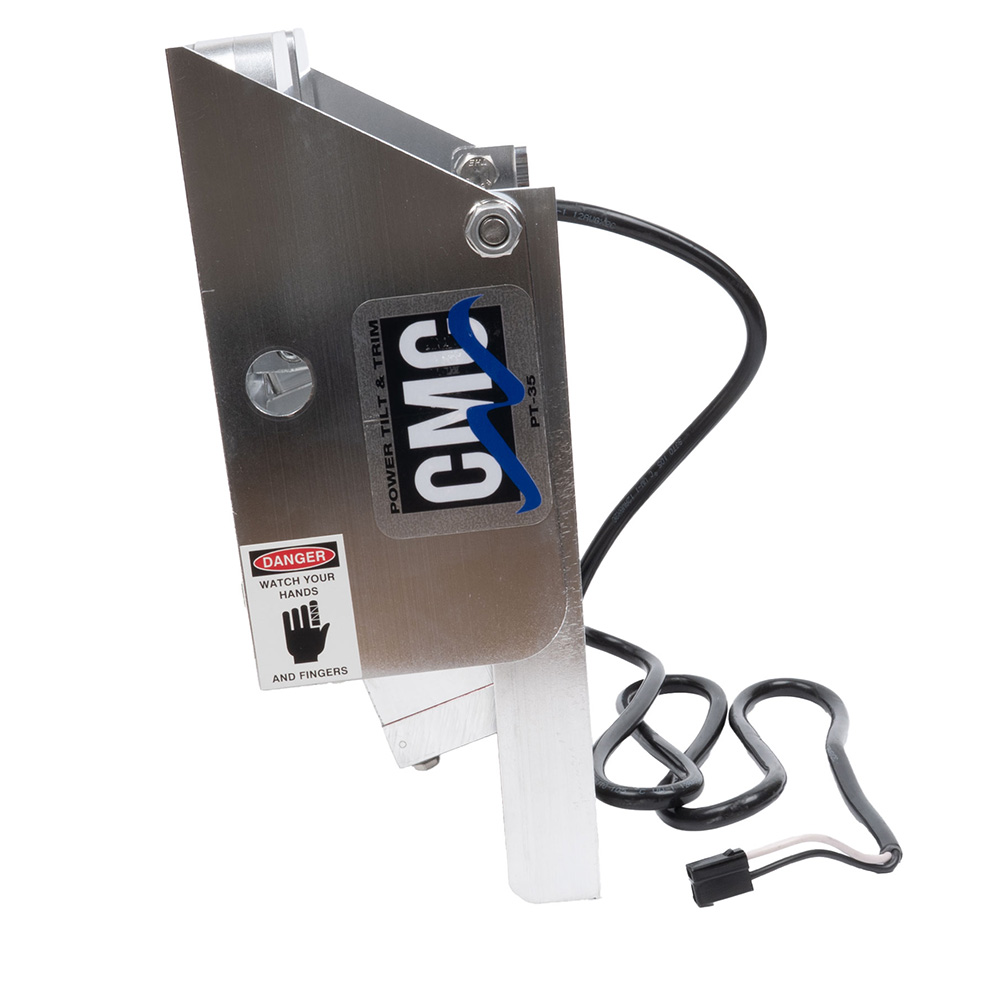

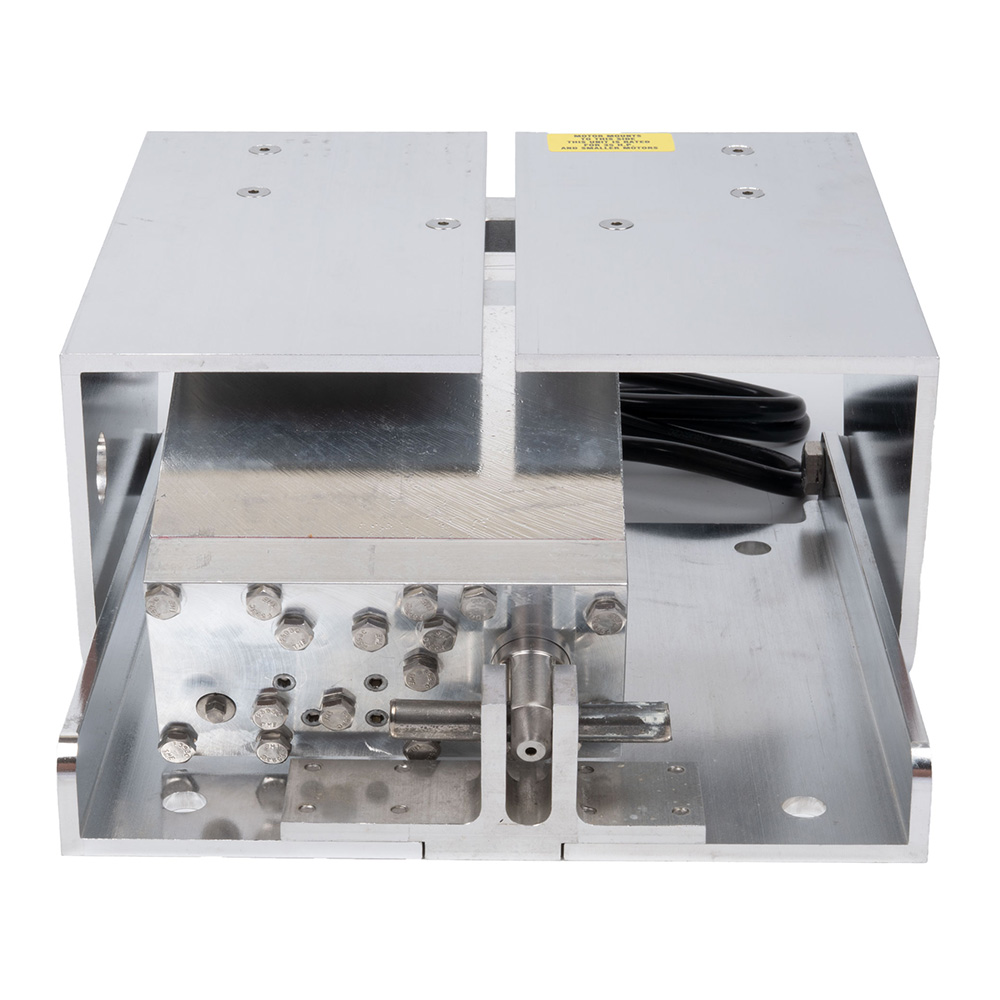

PT-35 Tilt & Trim for Up to 35hp

Elevate your boating experience with the CMC PT-35 Tilt & Trim, designed for up to 35 hp motors. This lightweight, durable unit enhances stability and performance, ensuring better handling and lower fuel consumption.

Features:

  • Rated for 35 hp power and smaller motors
  • 5 1/2" Setback to Enhance Boat Stability and Performance
  • 1/4" 6061 T6 Extruded Aluminum Construction with Stainless Steel Fasteners
  • Accommodates Clamp-on or Bolt-on Motors Without the Need for an Adapter

Specifications:

  • Power rating: up to 35 hp
  • Set Back: 5 1/2"
  • Trim and tilt: 84°

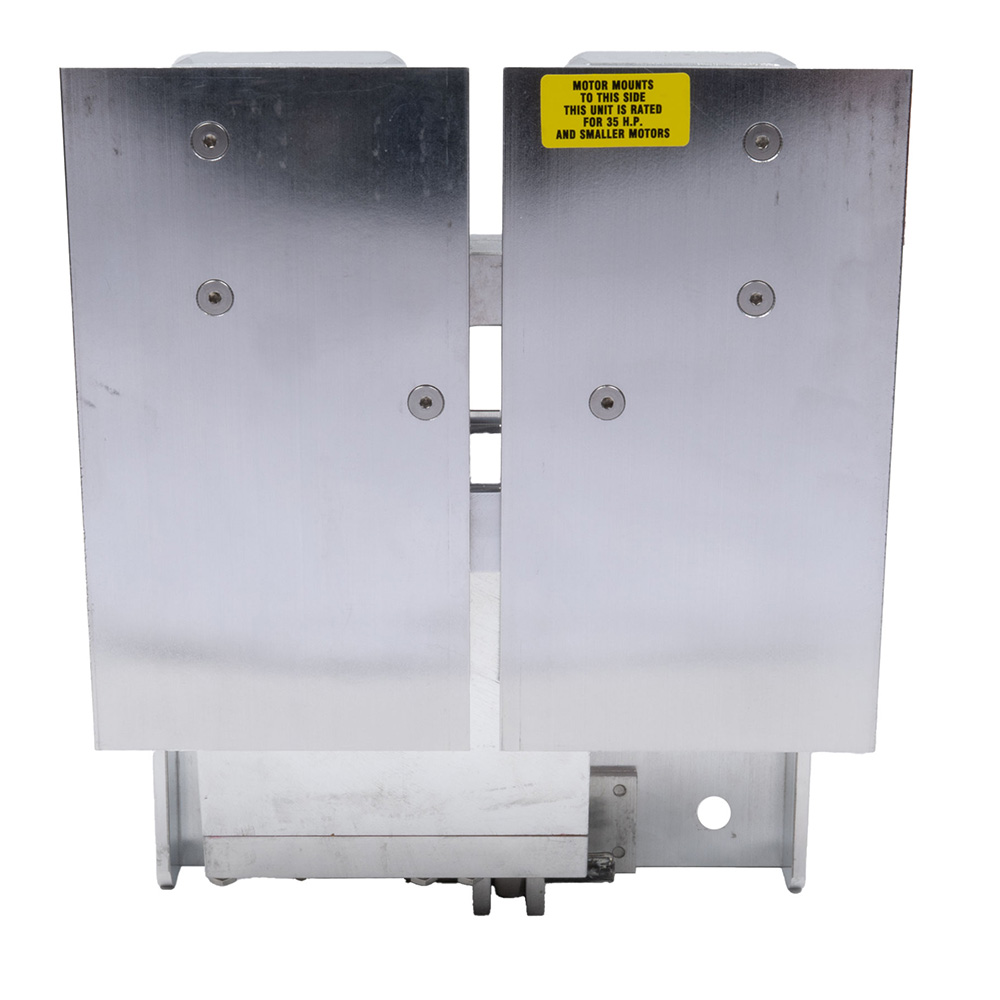

  • Inside dimension of the motor mounting area: 11"
  • Electric hydraulic actuator rating: 7853 lbs. of thrust
  • Weight: 24 lbs

Electric Hydraulic Tilt & Trim

You Get Power Tilt & Trim, Better Boat Handling, More Speed, Lower Fuel Consumption and No More Back Strain!

Note: The inside dimension of the motor mounting area of the PT-35 is 11 inches. Before ordering, please make sure that the maximum width of the clamp mounting feet and/or mounting bolts of the motor that must fit into this area does not exceed this 11 inch limit. Refer to the transom view drawings. Mounting bolts are not included with the PT-35.
